Products > ipl diode nd yag photon > > 808nm diode laser hair removal machine

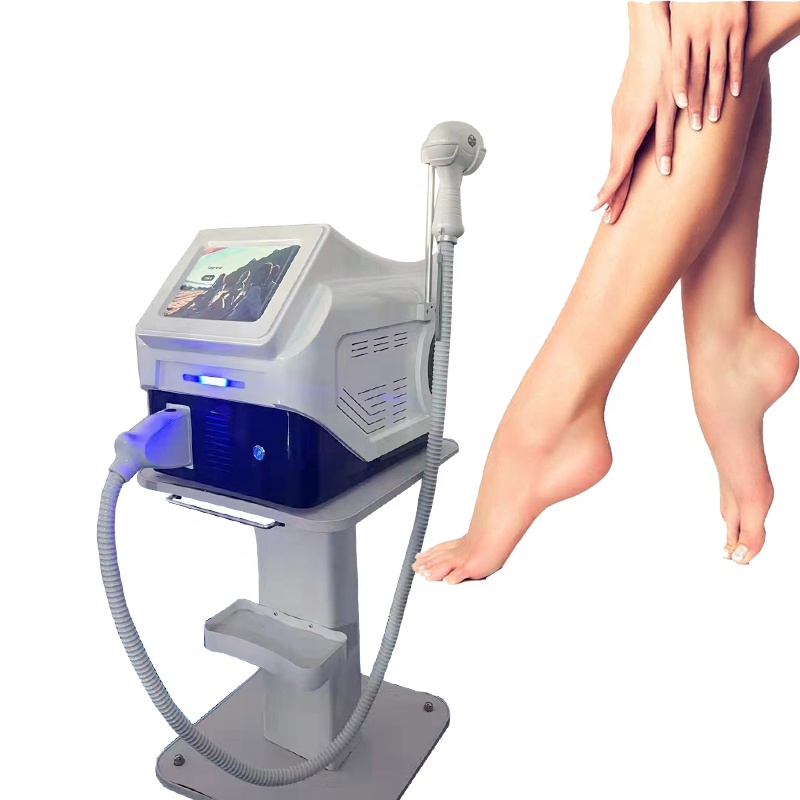

Product name : 808nm diode laser hair removal machine
Item : AF-P93F
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
 808nm laser diode / 808nm diode laser hair removal system /
newest 808nm diode laser

During a laser hair removal treatment, light passes through the skin and is absorbed by the melanin in
the hair shaft for regrowth, hair follicle and thermally destroys the cells responsible.After up to 3 treatment
course,you can get rid of the unwanted hair permanently.


808nm Diode laser hair removal system unique cooling technology,so that you can
directly into the hair roots,laser cooling at the same time protect the skin
surrounding tissue,improve the patient’s comfort.
Diode laser uses 808nm wavelength is applicable to:remove unwanted hair,and the
effect is stable,long-term or permanent.

808 freezing point is based on selective solar-thermal dynamics, through
adjusting the wavelength, energy and pulse width of the laser through the skin
to the hair root hair follicles, the heat energy is absorbed and break down
the follicle tissue, making hair regeneration.The system of quick freezing
point hair removal apply for refrigeration protection,It can make the
temperature up to -5℃,It solves a lot difficulties.At the same time , it

is safe, quick and permanent technology.


Output energy density (J/cm2) at each treatment is set by the operator. Energy
density: the total energy at a selected pulse type (J) Output / spot area(cm2 )
In a small spot (12X12mm), the scattering is minimal, so the result is a sustained
energy output and deeper penetration. The greater the energy density, the higher

the temperature of the target tissue of hair, the surrounding tissue and the

epidermis.

Technology:
wavelength  808nm OEM service
Working frequency  1~10hz Maximum frequency 20 Hz
Energy density  1-120j/cm2 OEM is ok
Handle piece  TEC+sapphire Sapphire OEM
cooling TEC cooling 12V6A TEC power OEM
Spot size  15cm×15cm or 12x12 mm Spot size and mouth of light OEM
Handle power  300w 600w Laser power available
Laser bars  Germany laser Jenoptik,150W/piece
Pulse width  5ms~400ms 0~1000ms OEM
Output mode  Pulse output Pulse output
Language Standard  English Can be made according to customer’s
display  8’ color touch screen 10.4’ is available
Protective  55℃ interface select OEM
Water pump  DP-60 diaphragm rods 12V Selected imported pump
Flow sensor  3.5L/min flow requirement
Water level  switch Test water level
Cooling system  240×120cooling line(2pc),18 pcs Compressor plan,TEC plan
Bars   300W power:  6 bars;     600W power:  10 bars
Cooling fan  4pcs fans,speed 3150r/min 12v fans
Case material  ABS shell/metal shell OEM metal shell
Inter structure  White zinc hob/color zinc hob OEM
Water tank  volume vertical3.6L/table type 2.5L OEM
Environment l  < 80% < 80%moisture
Environment  2 temperature ≤28℃
voltage  220V 110Vavailable
