Products > ipl diode nd yag photon > > 2in1 ipl nd yag machine

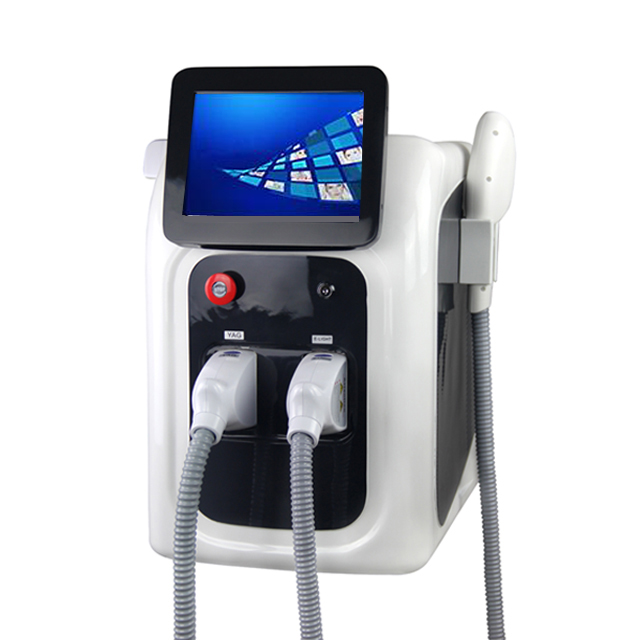

Product name : 2in1 ipl nd yag machine
Item : AF-P69
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

2 in 1 Multifunctional IPL ND YAG Laser e-light ipl rf nd yag laser multifunction machine
ipl laser hair removal portable

Multifunctional Workstation is a comprehensive and efficient facial care system, which is also a multifunctional beauty equipment having a collection of three top core technologies in medical cosmetology, namely, IPL, RF and YAG laser. Combining a variety of powers and giving full play to solar energy, bipolar RF and laser, it has a significant clinical effect and has been proved to safely and effectively apply to different skin types and skin complexion.

Technical Principles
E-light technology -- Aimed at entire dermis and connective tissue, IPL and Bipolar
RF technology stimulates and makes the collagen in different depths rearrange and grow so as to achieve the therapeutic effect, while bipolar radio frequency simultaneously releases energy, making diseased tissues in epidermis and dermis produce light pyrolysis through skin's selective absorption of light energy. Because of energy it needs far lower than traditional IPL, it makes the pigmented and vascular diseased tissues in epidermis and dermis absorb more energy without skin damage and removes these diseased tissues, by which achieves therapeutic effect.
SHR technology:The effective depth penetration of 640nm-1200nm professional wavelength of hair removal can reach to papilla, and continuously shines to ensure the target tissues produce sufficient heat that makes hair follicles and stem cells around them lose activity until hair follicles atrophy and hairs stop growing; latest single pulse technique and sapphire contacting operation head making operation and cooling work simultaneously, not only have a good long-term effect in hair removal, but also protect normal skin tissues from harm and make customers feel more comfortable during the operation.
YAG technology - on the basis of the theory that immediate and high-energy laser emission can efficiently crushes the pigment of diseased tissues, YAG makes irradiated pigment particles absorb power and swell to crack. Part of them splitting into more tiny nibs are excreted, and part of them are swallowed by body macrophage and excreted through lymphatic system, by which pigments are eliminated. Because normal tissue does not absorb the laser with fixed wavelength, thus the integrity of the cell framework is maintained without conditions that invoke scars form.
Application
- SHR: Permanent and fast hair removal
- Pigmentation removal, Freckle/Spots removal,
- Acne therapy
- Vascular therapy
- Skin rejuvenation, whitening
- Face lifting, Wrinkle removal
- All colors tattoo removal, eyebrow line/ eye line/ lip line pigments removal
- Removing the spots, nevus,birthmarks etc.

Product Parameters

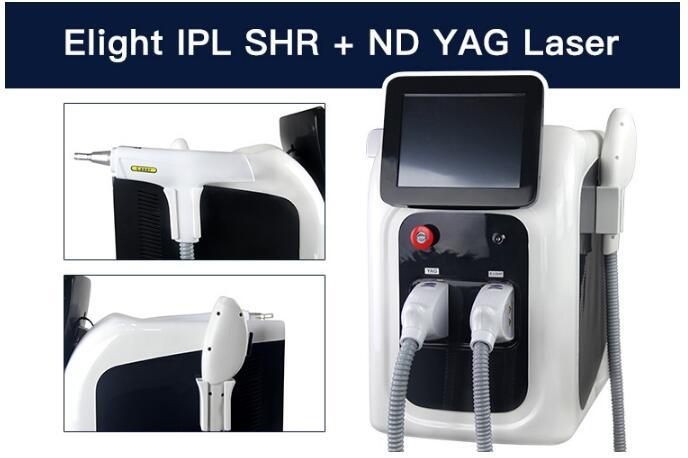

IPL ND YAG Laser Beauty Machine
Model Number
p68
Operating Language
9 kinds (can be customized)
Cooling System
Semiconductor Cooling+Air Cooling+Water Cooling
Output Power
2500W
Input Power
AC110/220±10% 50HZ/60HZ
Elight IPL SHR System
First Pulse Width
1--10ms, 0.1ms for adjustable unit
First Pulse interval
1--100ms, 1ms for adjustable unit
Pulse Number
1-6
Discharge Interval
1--4s
SHR Frequency
1-10 HZ
Wavelength
430nm, 480nm, 530nm, 560nm, 640nm
Spot Size
10*40mm

Energy
IPL Energy: 1--50J/cm²
RF Energy: 1--50HZ
E-light Power
2000W
ND YAG Laser System
Wavelength
1064nm & 532nm &1320nm
Spot Diameter
1--6mm continuously adjustable
Energy of Monopulse
The Largest Energy
2000mj
Q-switching Adjusting Method
Passive adjusting method
Work Frequency
1-10HZ
Laser power
500W
