Products > ipl diode nd yag photon > > 3in1 Elight ipl rf nd yag laser machine

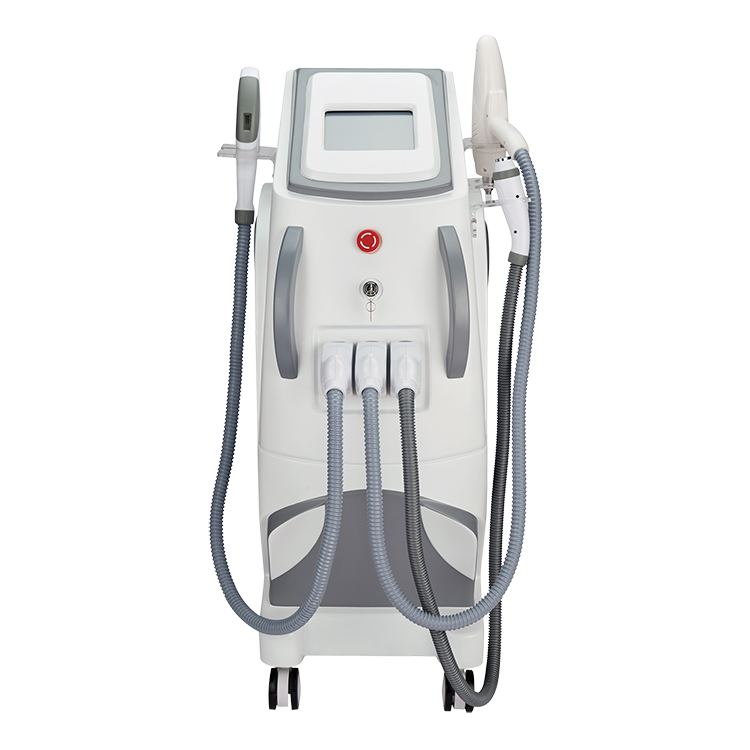

Product name : 3in1 Elight ipl rf nd yag laser machine
Item : AF-P10
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
Working principle:
   IPL is the acronym for "Intense Pulsed Light" and does hair removal with intense pulsed light irradiation. Unlike the laser which can only emit light at a specific wavelength, the IPL light is able to provide a broad wavelength range. The operating principle is very similar.

   Elight, combines IPL and Radio Frequency. The big advantage of combining IPL and Radio frequency is it reaches deeper down and does not affect melanin in the skin, so all skin types can be treated, which IPL cannot alone. This can also target light grey and red hair. Also by using this this latest technology together, it has the bonus of rejuvenating the skin at the same time leaving it softer than normal.

   Cause it uses IPL and RF complex energy, it can act on different deep layer, not single energy, so it can make sure more safety and effective on curing.

Compare with the traditional technique:

  The absorbing of the energy of radio frequency is not concerned with melanin. So, the treatment can get good result on the soft or thin hair so as to decrease the risk caused by traditional IPL treatment.

Treatment Applications

1. E light/ ipl permanent hair removal , plgmentations treatment ( Spots removal, smallpox removal,
freckle removal ), Skin rejuvenation( tighten skin, fine wrikles removal,whiten skin ), Acne treatment,
Vascular therapy
E light/ Ipl handle
2. Unipolar RF/ wrinkles removl,tighten skin ,lift skin,rebuild face outlimes and body contours,contract
large proes.
RF handle:

3. Nd yag laser/ all colors of tattoo removal , spots removal ( freckle,coffee spots,age spots,nevus of ota),
ebroidery lipline,eyeline,eyebrow pigments removal.
 Nd yag laser handle:
Beauty machine advantage
1.Multi-purpose,functional complementary,widely application,marvelous treatment effect
2.8.0 inch big Color Touch LCD screen,humanized menu, easy operation
3.The shell is made of the ABS environmental material and beautiful design.
4. The cooling temperature -2~0 °C,treatment more comfortable and safe
5. Water level, water flow and water automatic detection greatly increasing machine’s life; expectancy and
safety;
6. Long continuous work time, stable function, shot period of treatment
7. 6 Multilingual languages,anywhere in the world can be easily grasped.
8.With two operation molde,easy mode for new user,professional mode.

Technical Data:
E-light: IPL+Bipolar RF+ Water cycle refrigeration
Energy density: 10-50J/cm2 (IPL) 10-50J/m2 (RF)
Elight Spot size: 15*50mm2
E light power: 1800W
Discharge Interval: 1s,2s,3s,4s(variable)
E light Probe Tempreture: -2°C~0°C
Pulse Number: 1-10 1-200ms
pulse width: 1-200ms
Pulse space: 1-600ms
Wavelength: 640/530/480(Standard), 480-1200nm(Option)
RF handle size: Diameter of handpiece : 43mm/30mm//15mm
RF Frequency: 10Mhz
RF power: 1-20J/cm3
RF delay: 50-2500ms
RF Probe Tempreture: -2°C~0°C
Laser Power: Q switch nd yag laser 500000shots
Frequency: 1-6HZ
Energy: 1-1200MJ
Laser: 1064nm,532nm,BDLS
Water Alarm: Yes
Temperature Alarm: Yes
Kinds Of Screen: LCD digital touch screen 8.0inch
Cooling system: semiconductor+ intelligent cooling + water+ wind + gel
Voltage: 110V-130V ,60HZ/ 220V-240V,50 HZ
Size Of Machine: 50cm*53cm*118cm
Weight Of Machine: 40kg
