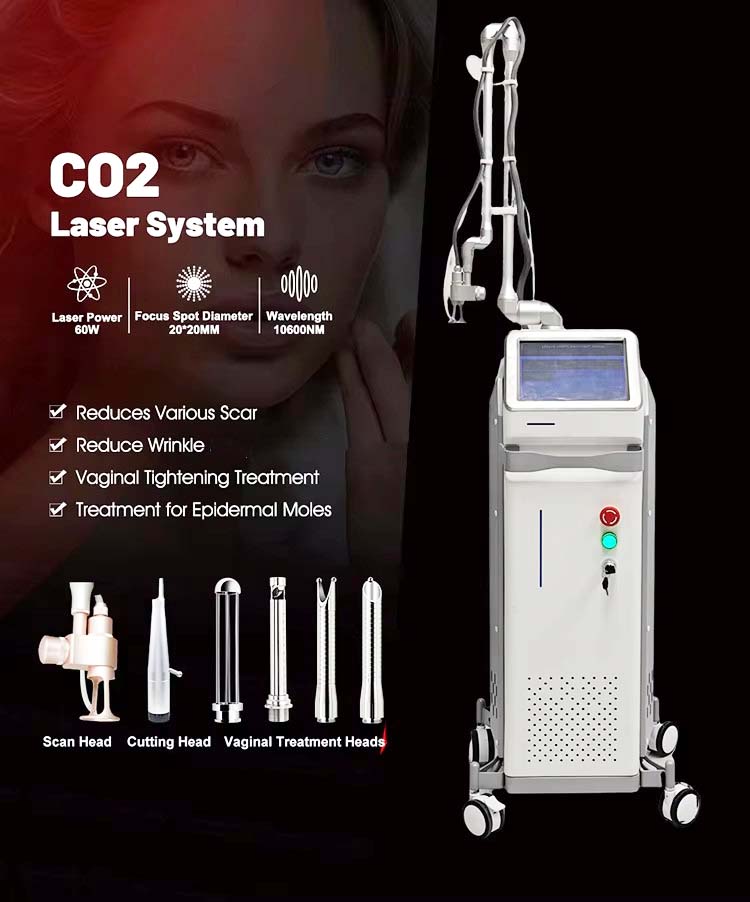

Laser wavelength10.6um,Red diode laser(650nm, 2mW)Transmission system : Spring-balanced 7 joint arms
Before Treatment
①Avoid exposure 2 weeks before treatment, apply sunscreen prevention.Within 1 week before treatment, avoid taking aspirin or aspirin drugs,except for medical advice.Try to avoid alcohol, fish oil nutritionalsupplements and vitamin E.
③1 week before treatment, please deactivate skin care products containingtype vitamin A, or nursing products containing fruit acid.The productscan be used 2 weeks after treatment.
After Treatment
After treatment, the customer cannot immediately touch the local to preventbacterial infections; the treatment area uses antibiotic or non-antibioticointment according to the doctor's order to prevent bacterial infection.Keep the treatment area clean and dry, avoid water within 3-7 days.Thesurrounding skin can be cleaned with a wet towel.
3After the crusting, it is not necessary to force zushing to prevent damage tothe skin, extend the cure time.
After string, avoid sunlight or using sunscreen to prevent pampine. If a pigmentation occurs,apply the spot cream, or the pigment naturally disappearafter 3 months or more.
After string, check the residue of the disease, if there is residue, an earlysupplementation is necessary.
Technical data:
Wavelength: 10600nm
Laser apparatus: Sealed off laser device simulated by direct current
Optical beam quality: TEM00
Spot size: 0.02~0.05mm2
Aiming beam: Red semiconductor laser (635nm, less than 5mw)
Beam transport device: Articulated arm with 7-joint and balance weight
Working mode: Continuous operation
Output Mode: Continuous, single pulse, interval pulse and super pulse
Scan scope: Max 20mmx20mm
Scan graphics: Circle, triangle, square, rectangle,hexagon, ellipse, line
Scanning Mode: Random , Normal and Midsplit scan
Scanning speed: More than 10m/s
Energy: 1- 60W
Distance: 0.1-2.6mm
Cooling system: air circulation
Weight: 60kg
Dimension: 65*48*117cm
Power: 220V/11V
